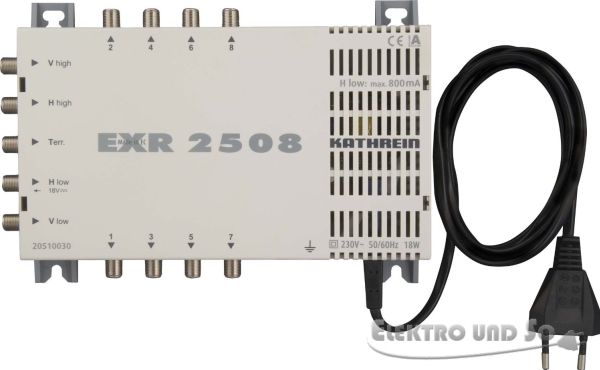

Kathrein EXR 2508, Grå, 47 - 862 MHz, 20 mA, 650 g, 50 mm, 240 mm
Art.nr.: [1319502] | Tillverkare: Kathrein | Modell-nr.: 20510095 | EAN: 4021121522772
Fjärrlager (6-7 arbetsdagar)
Varan finns i vårt fjärrlager, leveranstiden är 6-7 arbetsdagar. Mer info
Fri frakt Instabox - Närmaste Paketbox
Se alla alternativ
| Instabox - Välj själv paketbox | Gratis |
| Bring - Närmaste utlämningställe | Gratis |
| Budbee - Hemleverans - Levereras på eftermiddagen eller kvällen. | 129,00 |
| Bring - Hemleverans - Levereras till din dörr på vardagar mellan 08:00 och 16:00. | 135,00 |
SEK
1.820,00
ex. moms 1.456,00
Totalt inkl. frakt
1.820,00
Funktionen kräver att man är inloggad. Skapa en användare och gör bruk av vårt smarta listsystem till att hålla koll på framtidiga köp, regelbundna köp eller önskelistor.
Skapa användare
Login
Skapa användare
Login
Send på mail
- Multi-switch for eight connections, with an integrated power supply unit
- Low power consumption due to highly efficient, short-circuit proof switched-mode power supply unit and energy-saving concept (each multi-switch line is powered by the receiver connected to it and is thus switched off whenever the receiver is switched off)
- Kathrein-Power-Saving: LNB supply is switched off as soon as connected to the EXE 2508 or not other receiver is used in the cascade.
- This feature can be disabled, for example if loop-through multi-switches are used without Kathrein Power Saving in the cascade
- Cascadable with EXR 2554/2558
- Cascadable multi-switches for distribution of four Sat polarities and terrestrial signals to many receivers
- Only one drop cable is required per receiver (for twin receivers two drop cables are required)
- Option to select horizontal/vertical, low band/high band from each receiver
- Switch-over is effected over the coaxial cable with 14/18 V and 0/22 kHz signal frequency
- Integrated amplifier ensures low tap losses in the Sat-IF range
- Integrated pre-emphasis to equalise the cable loss
- Terrestrial signals can be received even when the satellite receiver is switched off
- Terrestrial range: 5-862 MHz passive
- High inter-output isolation
- Remote feeding over the input horizontal low. All other inputs are voltage-free (enabling operation with the UAS 585)
- For indoor installation
- Low power consumption due to highly efficient, short-circuit proof switched-mode power supply unit and energy-saving concept (each multi-switch line is powered by the receiver connected to it and is thus switched off whenever the receiver is switched off)
- Kathrein-Power-Saving: LNB supply is switched off as soon as connected to the EXE 2508 or not other receiver is used in the cascade.
- This feature can be disabled, for example if loop-through multi-switches are used without Kathrein Power Saving in the cascade
- Cascadable with EXR 2554/2558
- Cascadable multi-switches for distribution of four Sat polarities and terrestrial signals to many receivers
- Only one drop cable is required per receiver (for twin receivers two drop cables are required)
- Option to select horizontal/vertical, low band/high band from each receiver
- Switch-over is effected over the coaxial cable with 14/18 V and 0/22 kHz signal frequency
- Integrated amplifier ensures low tap losses in the Sat-IF range
- Integrated pre-emphasis to equalise the cable loss
- Terrestrial signals can be received even when the satellite receiver is switched off
- Terrestrial range: 5-862 MHz passive
- High inter-output isolation
- Remote feeding over the input horizontal low. All other inputs are voltage-free (enabling operation with the UAS 585)
- For indoor installation
