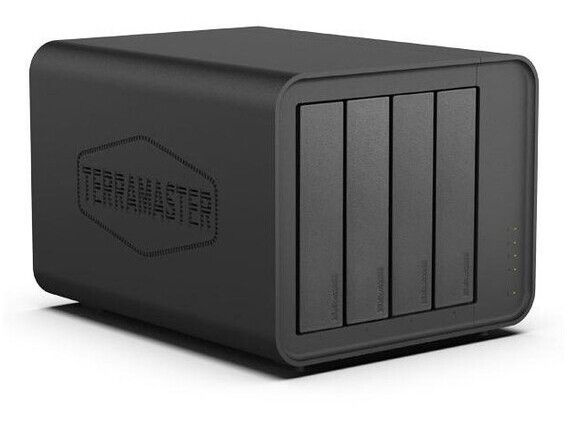

TerraMaster D8 HYBRID

Specification

D8 Hybrid Specification

Storage

Disk Slot Number: 4

Compatible Disk Types: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD

M.2 2280 NVMe Slot: 4 (PCIe3.0/4.0/5.0)

File System: NTFS, APFS, Mac OS, FAT32, EXT4, exFAT

Maximum Internal Raw Capacity: 120TB (22 TB drive x 4 + 8 TB drive x 4)

RAIDs Supported: SINGLE DISK, JBOD, RAID 0, RAID 1 (Only HDD1 and HDD2 support RAID array creation, the rest operate in Single mode.)

Hardware RAID: √

RAID Auto-rebuilding: √

HDD Sleep: √

External Ports

USB: USB3.2 Type-C gen2 10Gbps

Power Socket: DC IN 12V

Reading/Writing Speed (max.)

Reading Speed (max.): Read: 560MB/s (SSD*1); Read: 1016MB/s (SSD*4)

Reading Speed (max.): Read: 980MB/s (M.2 SSD*1)

Writing Speed (max.): Write: 520MB/s (SSD*1); Write: 960MB/s (SSD*4)

Writing Speed (max.): Write: 880MB/s (M.2 SSD*1)

Appearance

Size (H*W*D): 222 x 179 x 154 mm

Packaging Size (H*W*D): 300 x 275 x 186 mm

Weight: net weight 1.9Kg, gross weight 3.1Kg

Others

System fan: 120 x 120 x 25mm 1PCS

Fan mode: Smart

Noise Level: 21.0dB(A)

Power Supply

Power Supply: 90 W

AC Input Voltage: 100V to 240V AC

Current Frequency: 50/60 HZ, Single Phase

Power Consumption: 40.8 W (Access), 9.8 W (Hibernation)

Environment Temperature

Working Temperature: 0°C ~ 40°C (32°F ~ 104°F)

Storage Temperature: -20°C ~ 60°C (-5°F ~ 140°F)

Relative Humidity: 5% ~ 95% RH

Supported OS

Windows OS, Mac OS, Linux

Warranty

2 years

Certificate

CE, FCC, CCC, KC

Environment

RoHS compliance

Package Contents

Host unit (x1)

Power cord (x1)

USB Cable C to Type-C (10Gb) (0.8m x1)

Quick Installation Guide (x1)

Power adapter (x1)

Screws (several)

Limited Warranty Note (x1)
