EXSYS USB 2.0 to 8S Serial RS-232 ports, USB, Svart, CE, FC, ROHS, WHQL, FTDI, TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, 0 - 55 ° C

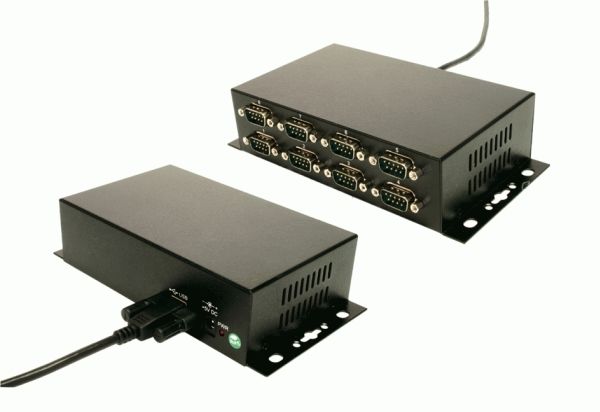

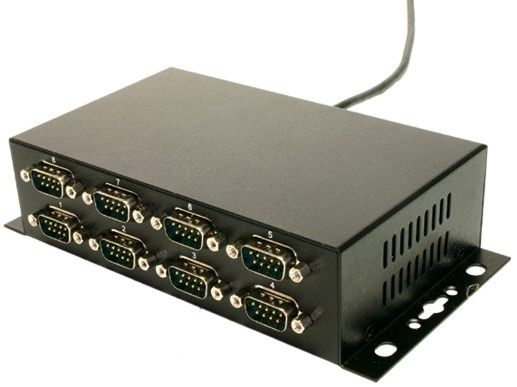

The USB 1.1 to Serial RS-232 metal box provides eight high performance 16C550-type UART compatible RS-232 serial ports. It is designed for PC, thin client or server to provide instant COM ports expansion in a robust metal box through the USB 1.1 or 2.0 Bus. With the easy installation you don’t need to open the computer system and install the EX-1338HMV when the system run. With the USB cable EXK1552 (2 meter) A-male to B-male and the power supply you can fix the connector with screw. The cable can’t be disconnect any more by himself. The cable are included in the packaging contents. Optional you can install the EX-1338HMV with the product EX-6099 (DIN-Rail-Kit) in a 19 inch Rack.
- Interface: RS-232 V.24
- FIFO Buffer: 16C550 with 16Byte
- I/O addresses: Setting from the operating system
- Interrupt: Setting from the System BIOS with Interrupt Sharing
- Data Bits: 5, 6, 7, 8 / Stop Bits: 1, 1.5, 2
- Parity: None, even, odd, space, mark
- Signal: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Power from the USB Bus (Bus Power) or power supply with screw lock
