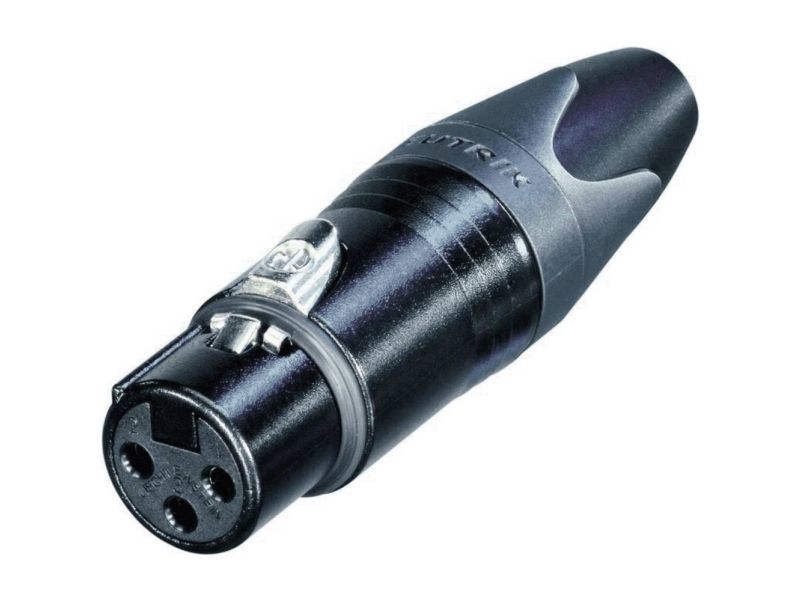

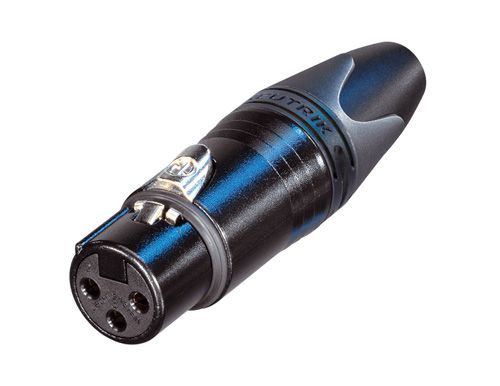

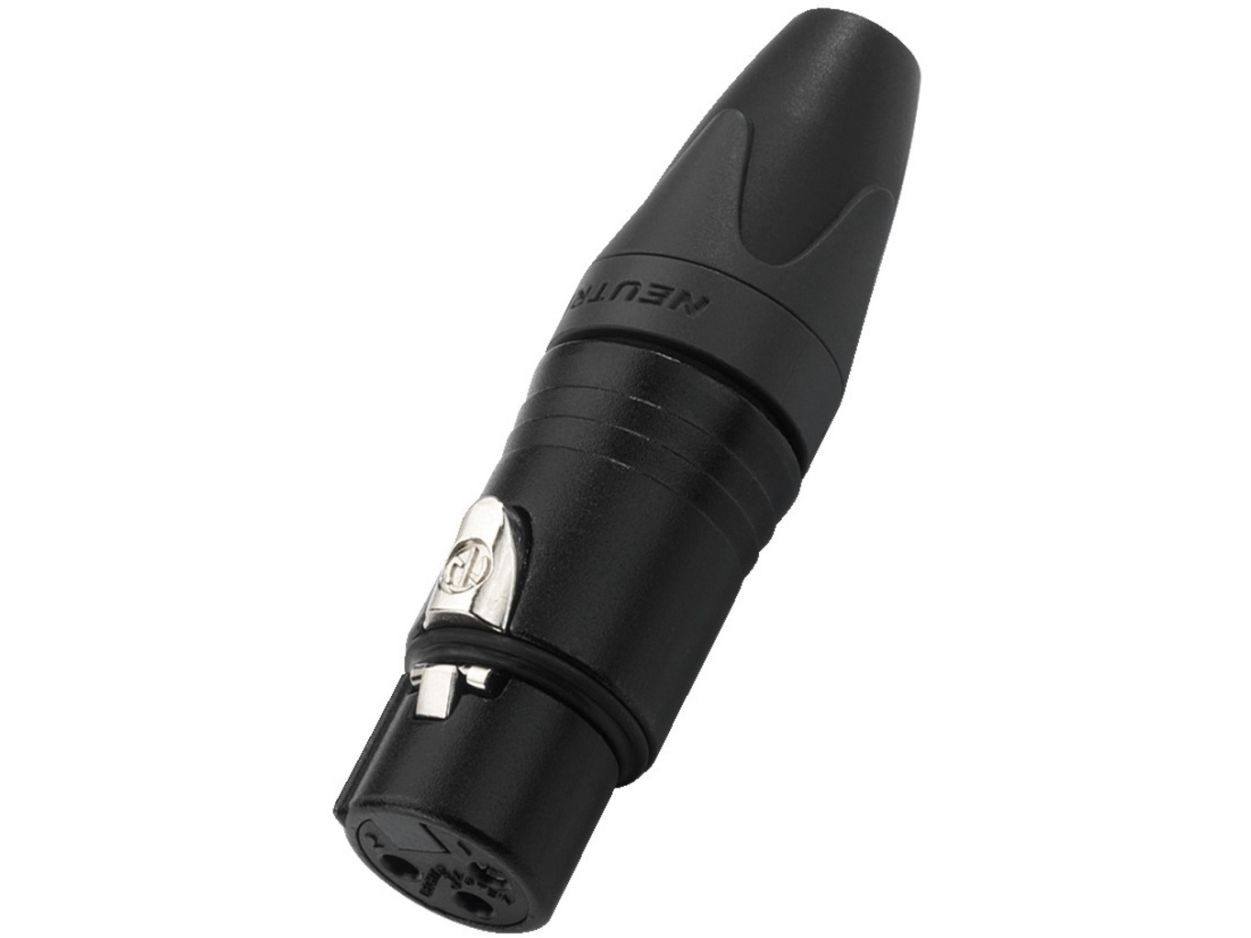

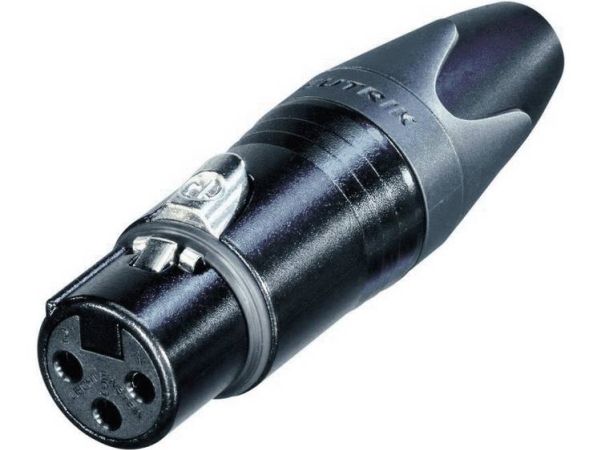

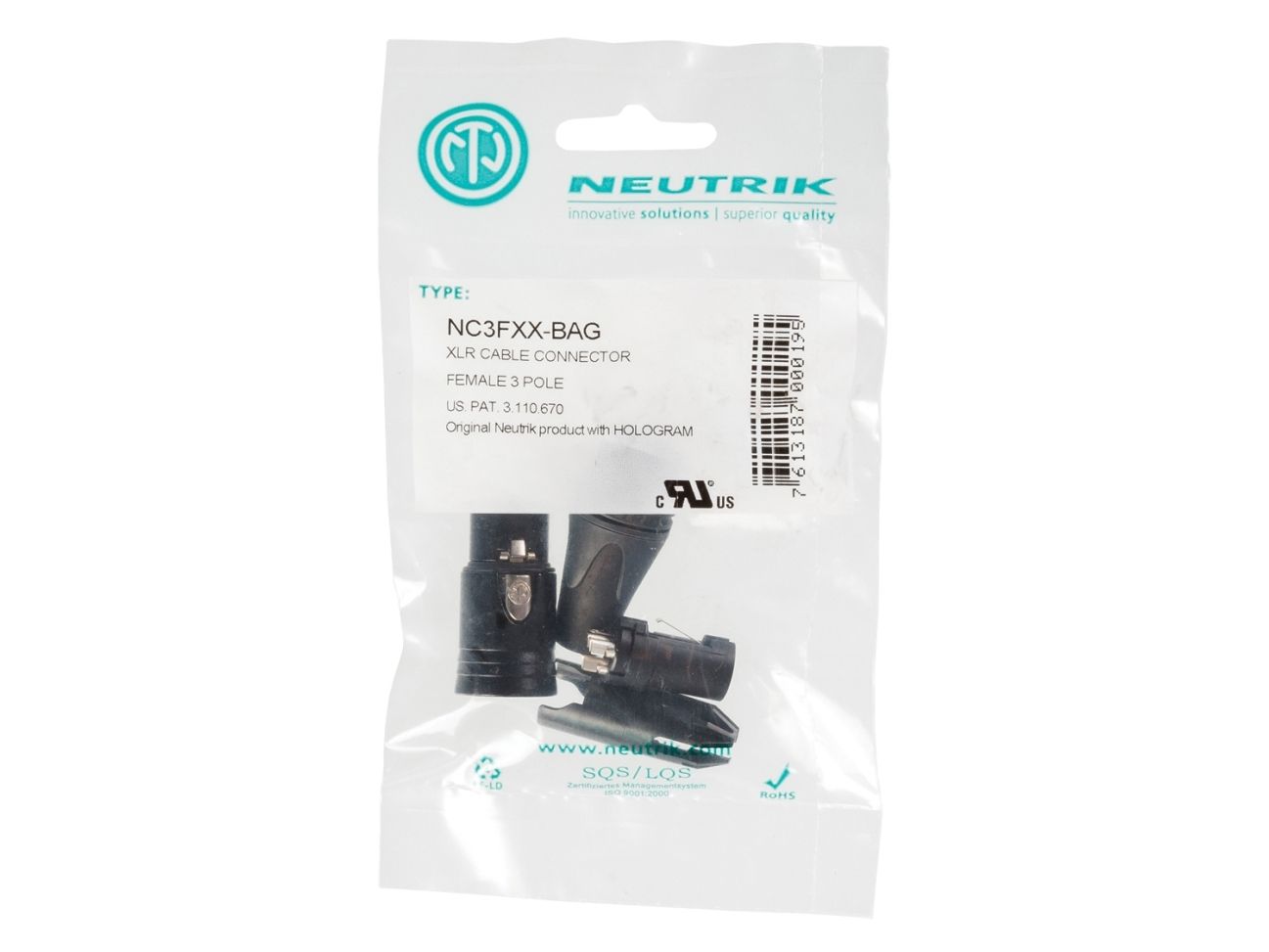

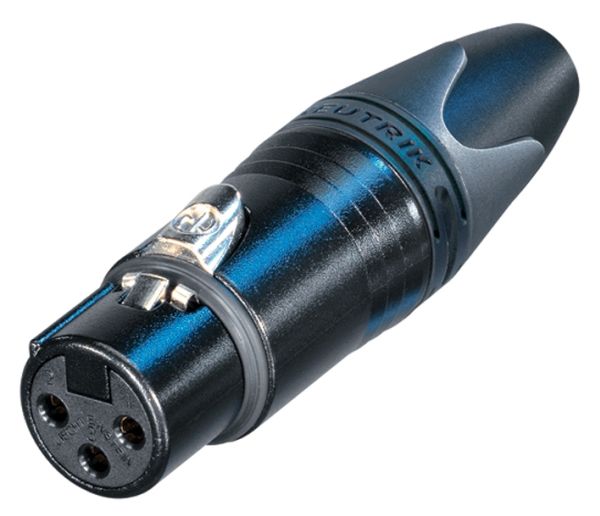

Neutrik NTR-NC3FXXBAG
Art.nr.: [4266124] | Tillverkare: Neutrik | Modell-nr.: NC3FXX-BAG | EAN: 7613187000195
Fjärrlager (6-7 arbetsdagar)
Varan finns i vårt fjärrlager, leveranstiden är 6-7 arbetsdagar. Mer info
Frakt 49,00 - Instabox - Välj själv närmaste paketbox
Se alla alternativ
| Instabox - Välj själv paketbox | 49,00 |
| Bring - Närmaste utlämningställe | 49,00 |
| Budbee - Hemleverans - Levereras på eftermiddagen eller kvällen. | 69,00 |
| Bring - Hemleverans - Levereras till din dörr på vardagar mellan 08:00 och 16:00. | 135,00 |
SEK
69,83
ex. moms 55,86
Totalt inkl. frakt
118,83
Funktionen kräver att man är inloggad. Skapa en användare och gör bruk av vårt smarta listsystem till att hålla koll på framtidiga köp, regelbundna köp eller önskelistor.
Skapa användare
Login
Skapa användare
Login
Send på mail
• 3-polig XLR-hona
• Svart metallhus och silverkontakter The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
TECHNICAL DATA
Product
• Connector: Type XLR
• Gender: female
Electrical
• Capacitance between contacts: = 4 pF
• Contact resistance: = 3 mO
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 2 GO (initial)
• Insulation resistance: > 1 GO (after damp heat test)
• Rated current per contact: 16 A
• Rated voltage: 50 V
Mechanical
• Cable O.D.: 3.5 - 8.0 mm
• Insertion force: = 20 N
• Withdrawal force: = 20 N
• Lifetime: > 1000 mating cycles
• Wire size: max. 2.5 mm²
• Wire size: max. 14 AWG
• Wiring: Solder contacts
• Locking device: Latch lock
Material
• Boot: Polyuretan
• Bushing: Polyamide (PA 6 15% GR)
• Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
• Contacts: Bronze (CuSn8)
• Insert: Polyamide (PA 6.6 30 % GR)
• Locking element: Zinc diecast (ZnAl4Cu1)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Black chromium
• Strain relief: Polyacetal (POM)
Environmental
• Flammability: UL 94 HB
• Standard compliance: IEC 61076-2-103
• Protection: class IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
