SEK 0,00
(fraktkostnad: 0,00)

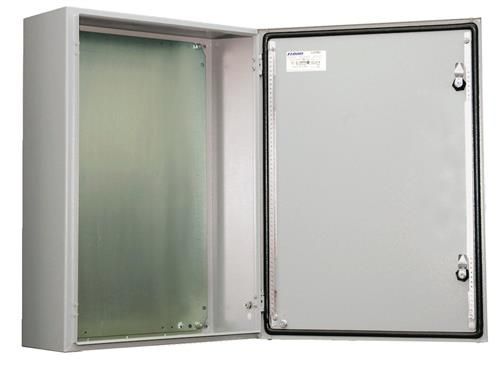

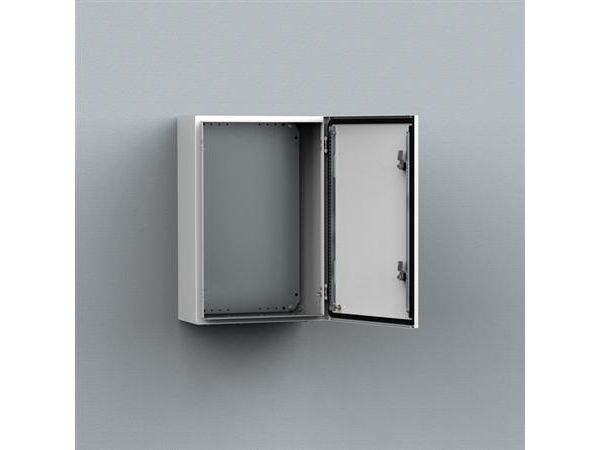

Hoffman MAS0808030R5, 800 mm, 300 mm, 800 mm, 40,4 kg, 1 styck
Art.nr.: [5063737] | Tillverkare: Hoffman | Modell-nr.: MAS0808030R5 | EAN: 8713574128293 | UNSPSC.: 39121324 | EL-nr.: 7812252081
Fjärrlager (2-3 arbetsdagar)
Varan finns i vårt fjärrlager, leveranstiden är 2-3 arbetsdagar. Mer info
Pall-leverans till trottoarkant (8:00-16:00 på vardagar)
– Daglig deadline för avsändande kl. 14:00 (OBS! Vi levererar inte till icke brofasta öar)
Fraktkostnaden är baserad på leverans till postnummer: - Ändra postnummer
Ange postnummer för leverans:
SEK
5.047,00
ex. moms 4.037,60
Totalt inkl. frakt
5.047,00
Funktionen kräver att man är inloggad. Skapa en användare och gör bruk av vårt smarta listsystem till att hålla koll på framtidiga köp, regelbundna köp eller önskelistor.
Skapa användare
Login
Skapa användare
Login
Send på mail
For outdoor installation, the use of a rain hood ARF and 100% polyester paint coating is recommended
Body: Folded and seam welded. Four 8.5 mm diameter holes for wall fixing, pressed out in 20.4 mm diameter × 2 mm depressions, to allow air circulation around the rear part of the enclosure
Door: Surface mounted with 130-degree opening; concealed removable hinges with captive pin
Door: Hinges can be mounted to allow left or right hand opening
Door: inner M6 welded studs to mount door profiles MMDP
Door: Sealing is ensured by an injected one piece polyurethane gasket
Lock: Customized lock with double-bit for easy opening of the door
Gland plate: Situated at the far rear of the enclosure, to make cabling onto the mounting plate easier
Mounting plate: The mounting plate is marked vertically at 10 mm intervals, for easy horizontal positioning of equipment
Mounting plate: On the top and bottom there are holes to facilitate cable fixing
Mounting plate: All sides, from 800 mm and above, are strengthened by folded edges
Delivery: Enclosure with door and mounting plate; for height 600 mm and above, two door mounting profiles; gland plate(s) with gasket(s), plastic double-bit 3 mm key, mounting accessories, metallic key, for height 1000 mm and above
Body: Folded and seam welded. Four 8.5 mm diameter holes for wall fixing, pressed out in 20.4 mm diameter × 2 mm depressions, to allow air circulation around the rear part of the enclosure
Door: Surface mounted with 130-degree opening; concealed removable hinges with captive pin
Door: Hinges can be mounted to allow left or right hand opening
Door: inner M6 welded studs to mount door profiles MMDP
Door: Sealing is ensured by an injected one piece polyurethane gasket
Lock: Customized lock with double-bit for easy opening of the door
Gland plate: Situated at the far rear of the enclosure, to make cabling onto the mounting plate easier
Mounting plate: The mounting plate is marked vertically at 10 mm intervals, for easy horizontal positioning of equipment
Mounting plate: On the top and bottom there are holes to facilitate cable fixing
Mounting plate: All sides, from 800 mm and above, are strengthened by folded edges
Delivery: Enclosure with door and mounting plate; for height 600 mm and above, two door mounting profiles; gland plate(s) with gasket(s), plastic double-bit 3 mm key, mounting accessories, metallic key, for height 1000 mm and above
