EXSYS EX-1504HMS, USB 3.2 Gen 1 (3.1 Gen 1) Typ-B, USB 3.2 Gen 1 (3.1 Gen 1) Typ-A, 5000 Mbps, svart, metall, 1,5 m

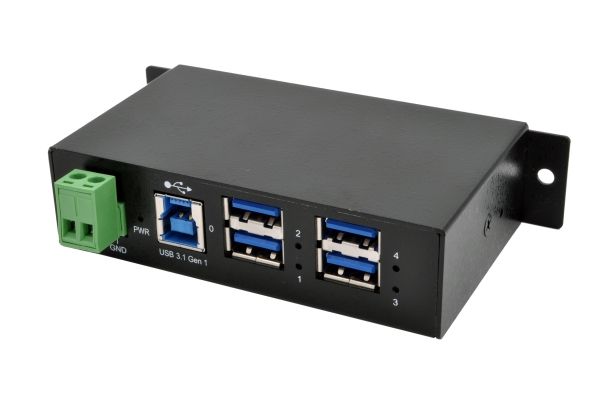

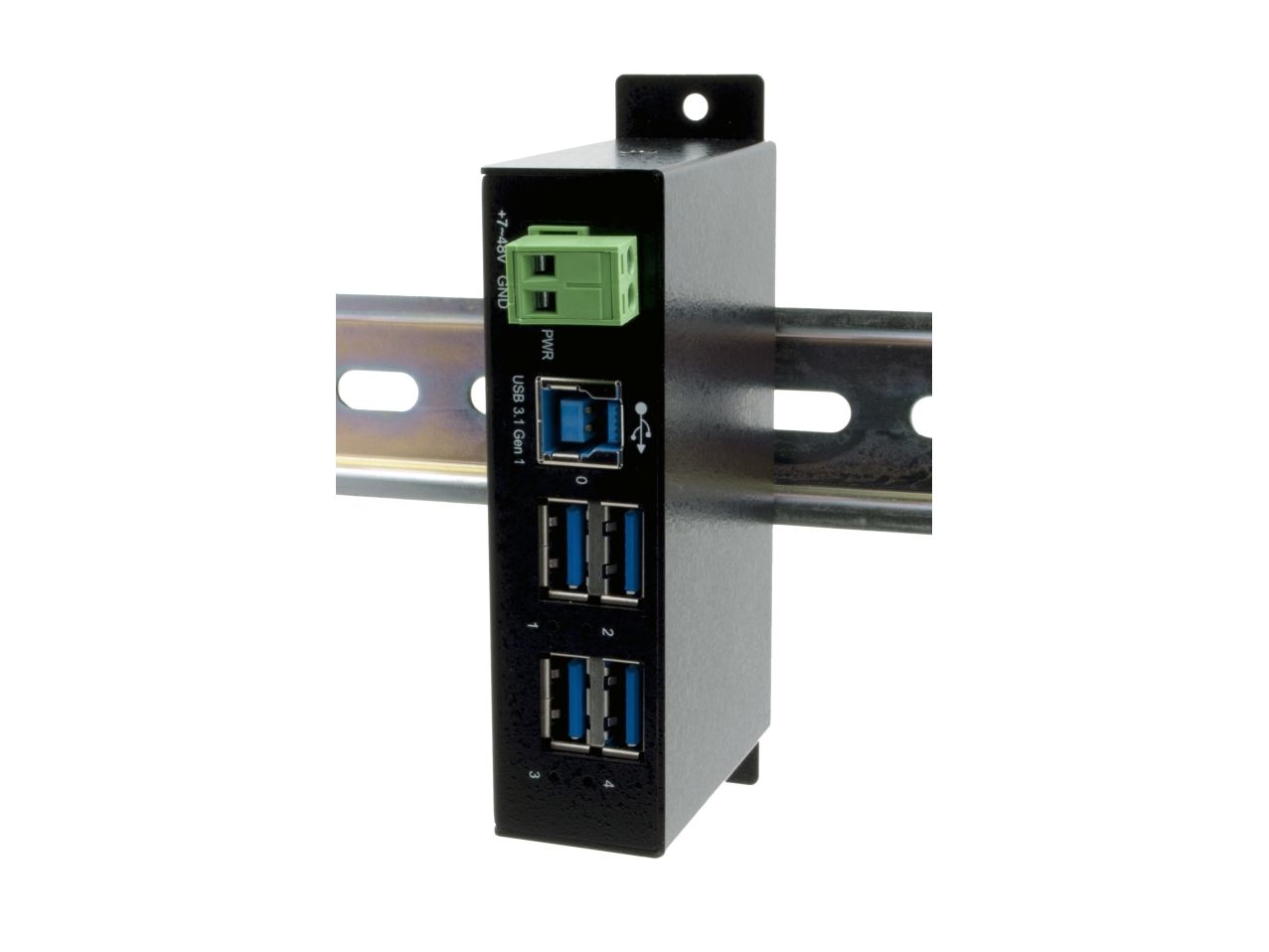

The EX-1504HMS is a USB 3.2 Gen1 (or general called as USB 3.0 or 3.1 Gen1) Hub which is designed to provide rich and unique features for industrial applications. It provides an instant expansion of four USB 3.2 Gen1 downstream ports and is compatible with all existing USB 3.1, USB 2.0 and USB 1.1 devices. The EX-1504HMS supports the USB battery charging specification v1.2 (SDP, CDP, DCP) as well as some Vendor Specific Charging Modes e.g. Apple 2.4A and Samsung.

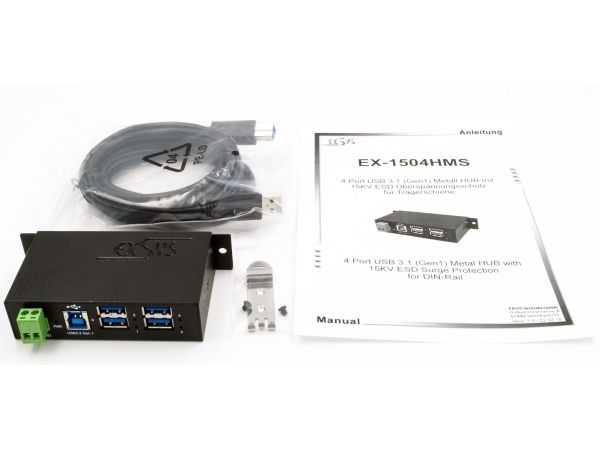

The EX-1504HMS is supplied with the managing software utilities which can turn on/off the bus power of each downstream device or even reset the entire Hub. It also can save the designated state to its flash memory and read it back as the initial state of its next power up cycle. Different utilities were supported for different operating systems such as Windows, intel x86 and ARM based Linux. It contains several management software utilities, for the different platforms like GUI software (Graphical User Interface) or also the console command line for all common Microsoft Windows systems. It also includes utilities for different Linux versions. The utilities were written to easily operate with the applications software written with different language such as C#, C++,VB, Python or even PHP server scripting language.
